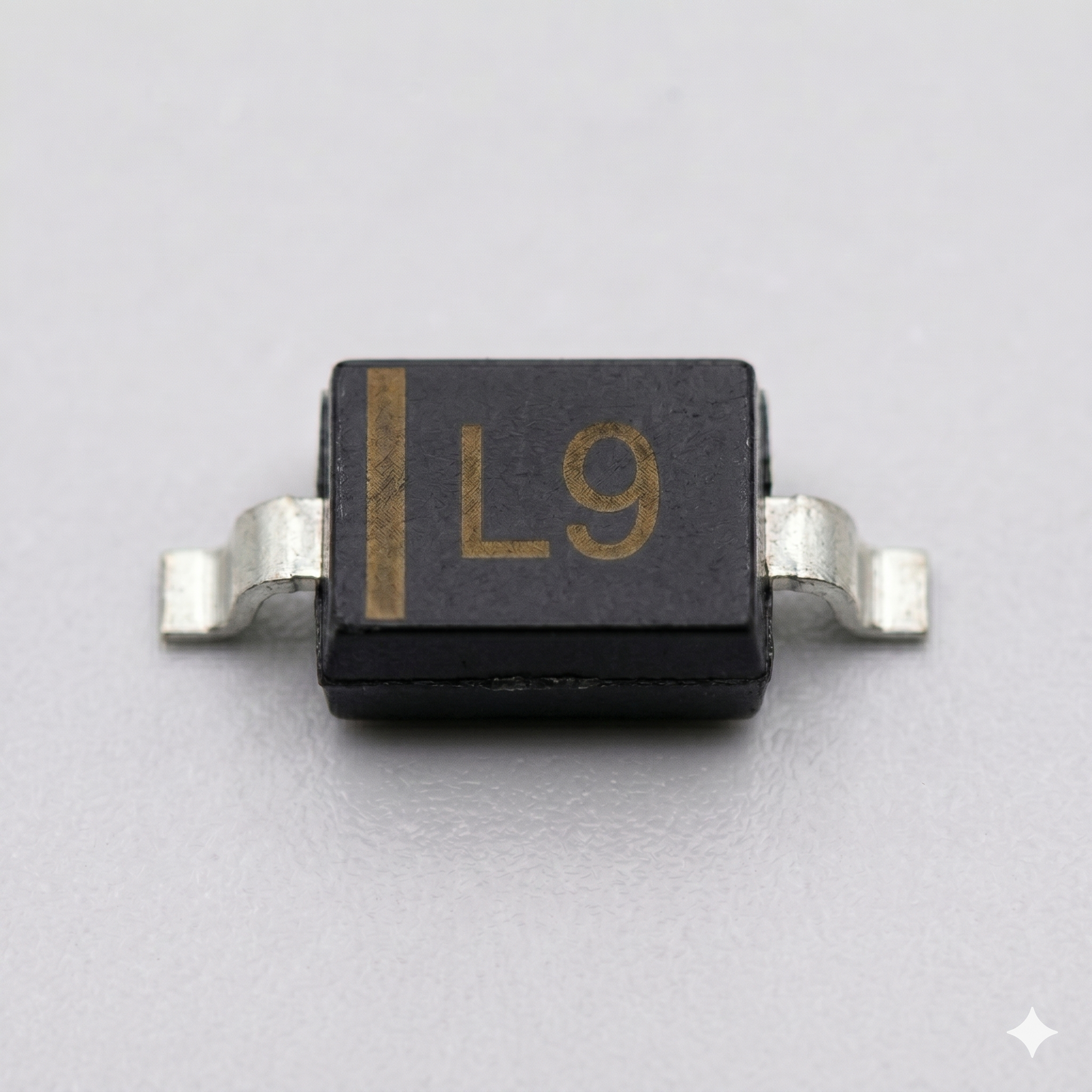

BAT54WS-7-F SMD Schottky Barrier Diode | 30V 100mA SOD-323 (Marking L9)
Rs.0.00
The BAT54WS-7-F is a premium surface-mount (SMD) Schottky Barrier Diode designed for high-speed switching and low power dissipation. Featuring the standard SOD-323 package with a precise 2-pin configuration and an authentic L9 laser marking, this component is ideal for power management and transient protection in demanding electronic circuits. Engineered for reliability, it delivers a maximum repetitive reverse voltage of 30V and a forward current of 100mA, making it a critical asset for global manufacturing and digital hardware projects.
Premium BAT54WS-7-F SMD Schottky Barrier Diode (SOD-323)
The BAT54WS-7-F is a high-performance surface-mount (SMD) Schottky diode engineered for ultra-high-speed switching and exceptional transient protection. Packaged in a compact 2-pin SOD-323 form factor with a clearly defined L9 laser marking, this component ensures seamless integration into modern power management and automotive circuit designs.
Key Technical Specifications:
- Full Part Number: BAT54WS-7-F
- Diode Type: Schottky Barrier / Single Configuration
- Package Size: SOD-323 (Surface Mount, 2-Pin)
- Product Marking: L9
- Max Repetitive Reverse Voltage (Vrrm): 30V
- Average Forward Current (If): 100mA
- Max Forward Surge Current (Ifsm): 600mA
- Reverse Recovery Time (trr): 5ns
- Operating Temperature: -65°C to +150°C
