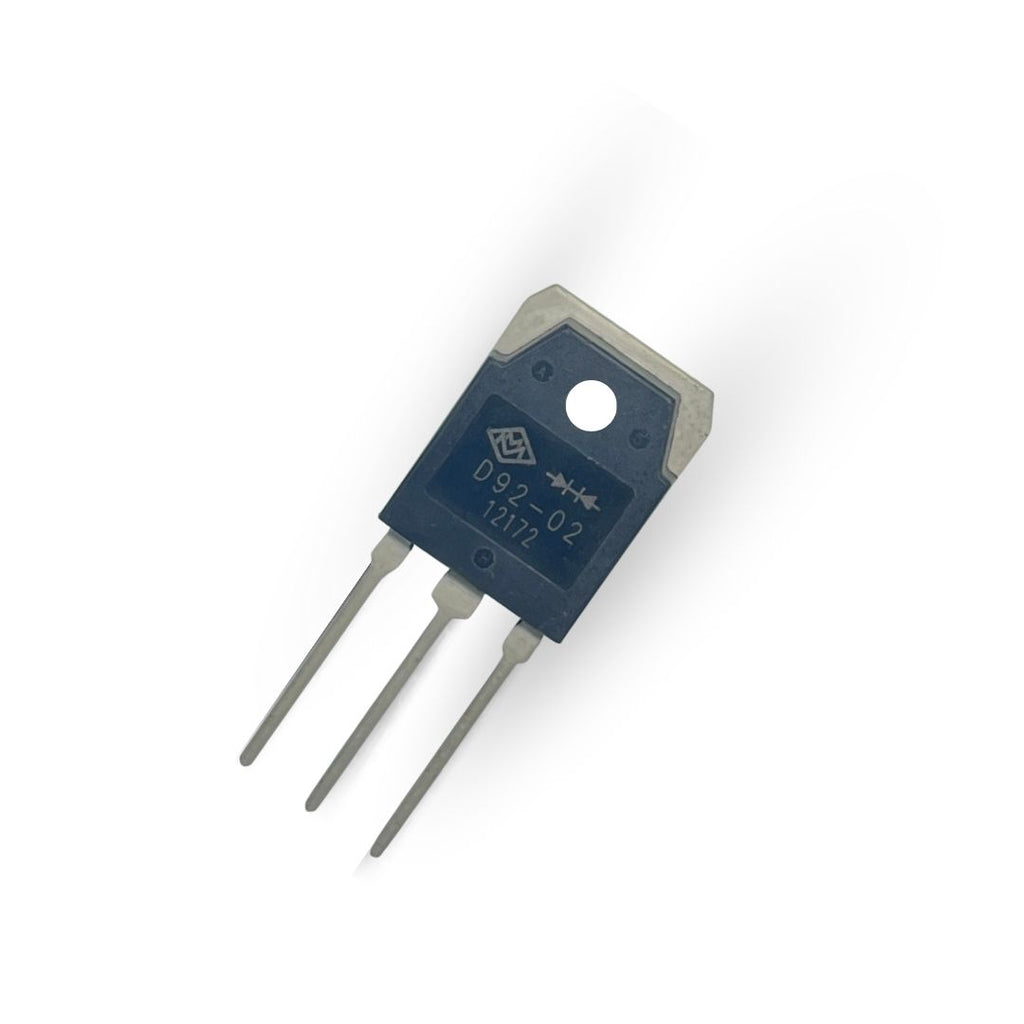

D92-02
Rs.190.00
This 200V 10A Ultrafast Recovery Diode is a high-performance power rectifier designed for modern high-frequency switching applications. Built using advanced epitaxial silicon construction and soft recovery technology, it delivers extremely low switching losses, reduced electrical noise, and improved system efficiency.
The dual common cathode configuration makes this diode an excellent companion for IGBTs and MOSFETs, especially in power conversion systems where fast recovery and low stored charge are critical. Its ultrasoft reverse recovery behavior minimizes voltage overshoot, EMI, and ringing, helping designers reduce snubber circuits, component count, and heat sink size.

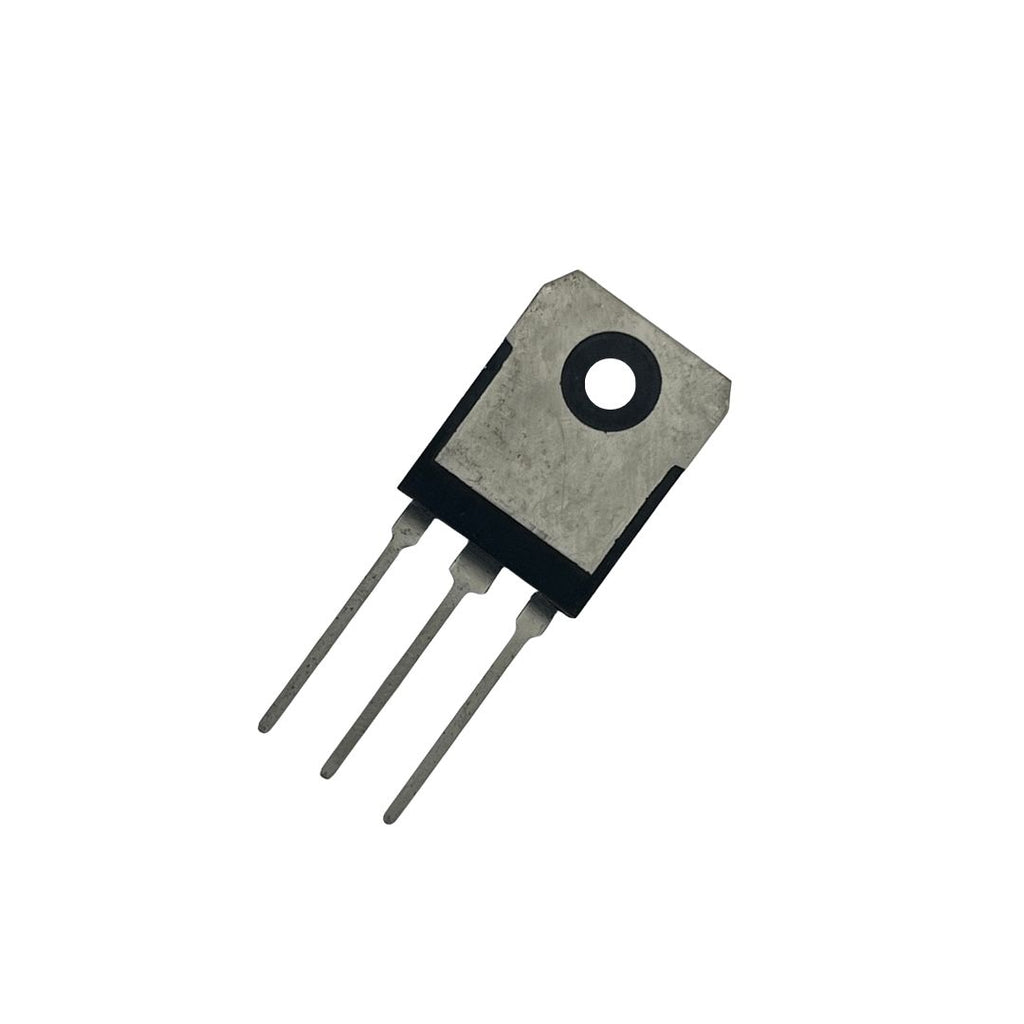

Housed in a TO-3P package, this diode offers strong thermal performance and reliable operation across a wide temperature range, making it suitable for demanding industrial environments.
Key Features & Benefits
-
Ultrafast and soft reverse recovery
-
Low forward voltage drop for high efficiency
-
Very low reverse recovery charge (Qrr)
-
Reduced switching losses in power devices
-
Low EMI and RFI generation
-
High surge current capability
-
Designed for industrial-grade applications
-
Optimized for high-frequency operation
Parameter
Value
Diode Type
Ultrafast Recovery Diode (FRED)
Configuration
Dual Common Cathode
Peak Reverse Voltage (VRRM)
200 V
Average Forward Current
10 A per diode
Total Forward Current
20 A per package
Forward Voltage Drop
~0.9 V @ 10 A
Reverse Recovery Time
Ultra-fast (soft recovery)
Reverse Leakage Current
Very Low
Surge Current (IFSM)
Up to 150–200 A
Junction Temperature Range
-55°C to +150°C
Storage Temperature
-55°C to +150°C
Package Type
TO-3P
Mounting Style
Through Hole
RoHS Compliance
Yes
Typical Applications
-
Switching Mode Power Supplies (SMPS)
-
Inverter power supplies
-
DC-DC converters
-
Free-wheeling and clamp circuits
-
Motor drives
-
UPS systems
-
Power factor correction (PFC)
-
Industrial welding and plating power supplies
