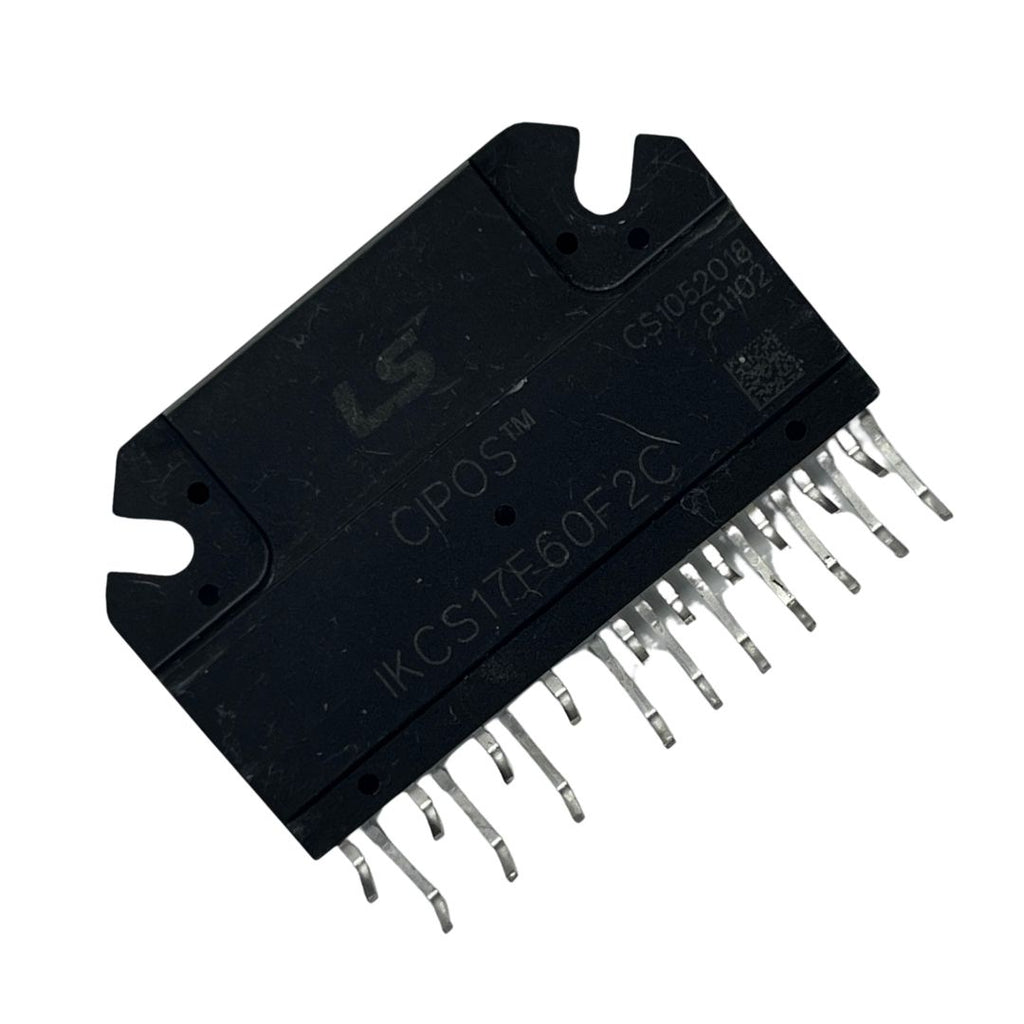

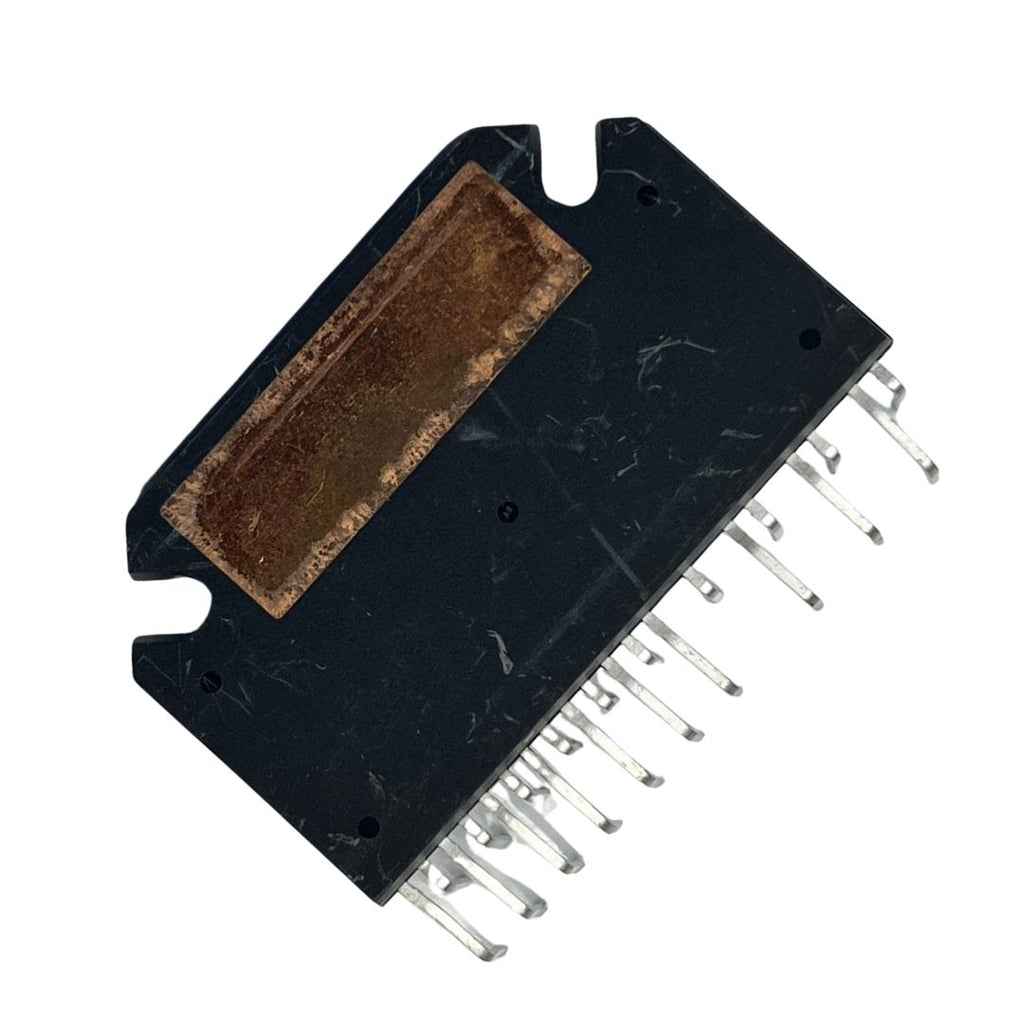

IKCS17F60F2C

This 600V / 17A Intelligent Power Module (IPM) is a compact, single-in-line motor-drive solution designed for efficient three-phase AC control. The module integrates a power IGBT stage, gate-driver circuitry, bootstrap components, temperature sensing, and protection logic into one isolated housing — making it ideal for appliance-grade inverter boards and compact motor controllers.

Its low-loss trench IGBT architecture minimizes conduction losses, while the optimized diode design reduces EMI and switching noise. With direct 3.3V / 5V logic compatibility and matched propagation delay across channels, this module easily interfaces with microcontrollers for high-response motor regulation.

Built-in safeguards include undervoltage lockout, current monitoring through open-emitter pins, cross-conduction suppression, thermal feedback, and FAULT signaling, ensuring stable and fail-safe operation under demanding load profiles. The isolated package enhances thermal performance, reduces PCB footprint, and streamlines heatsink mounting.

Designed to support variable-speed AC motors across 85–250VAC lines, the module is widely used in appliance compressing systems, HVAC fans, washing machine drums, industrial blowers, and small inverter-driven pumps.

This makes it a preferred choice wherever durability, switching efficiency, compact assembly, and motor protection are key design goals.

⭐ Key Features (Consolidated)

• 600V three-phase motor drive module

• 17A continuous current (higher peak capability)

• Low VCE(sat) trench IGBT switching

• Integrated bootstrap diode and capacitor

• SOI-based high-noise-immunity gate driver

• Supports 3.3V & 5V logic microcontrollers

• Built-in temperature sense monitoring

• Fault-output pin for protection feedback

• Undervoltage lockout on all drive channels

• Cross-conduction and short-event prevention

• Open-emitter pins for phase-current monitoring

• Isolated package optimized for heatsink mounting

• Low-EMI design with adapted anti-parallel diode

• Lead-free and RoHS-compliant

• Tested for high-temperature stress endurance

🏭 Target Applications

• Air-conditioner compressor drives

• Refrigeration inverter systems

• Washing machine drum motors

• HVAC blowers and appliance fans

• Small pump drives

• Variable-speed industrial motors

• Compact UPS motor stages

• Appliance-grade AC inverters


  Parameter	Value
  Topology	Three-Phase IGBT Motor Drive
  Voltage Rating	600V
  Output Current	~17A (continuous)
  Peak Current	~30A
  Input Logic	3.3V / 5V
  Driver Technology	SOI Gate Driver
  Thermal Range	–40°C to +125°C
  Isolation Strength	~2500Vrms (1 min)
  Protection	UVLO, Cross-Conduction, Monitoring, FAULT Output
  Current Feedback	Open-Emitter
  Bootstrap Circuit	Integrated Diode + Capacitor
  EMI Control	Optimized Diode + Rugged Layout
  Package Type	Single-In-Line (Through-Hole)
  Compliance	RoHS
