RS1M Fast Recovery SMD Diode | 1A 1000V | SMA Package

High-Performance RS1M Fast Recovery SMD Diode

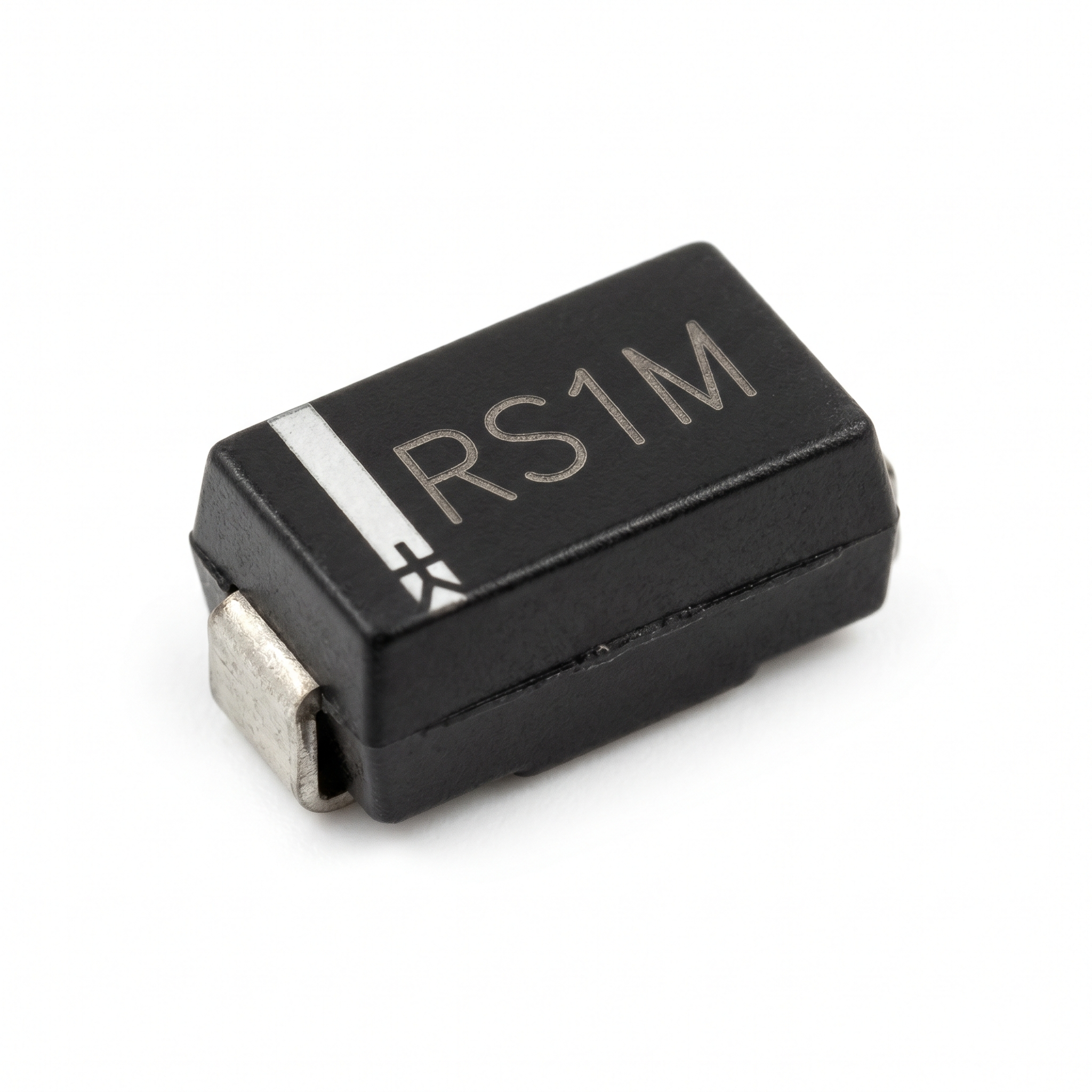

The RS1M is a highly reliable surface-mount (SMD) Fast Recovery Diode housed in a standard SMA (DO-214AC) package. Designed for high-frequency rectification and freewheeling applications, this diode offers an optimal balance of fast switching speeds and high reverse voltage capabilities, making it essential for modern power electronics.

Key Features & Specifications

• Part Number: RS1M
• Product Type: Surface Mount Device (SMD)
• Category: Fast Recovery Diode
• Package Size: SMA (DO-214AC)
• Pin Count: 2 Pins
• Component Marking: RS1M
• Maximum Repetitive Peak Reverse Voltage: 1000V
• Maximum Average Forward Rectified Current: 1.0A
• Fast Reverse Recovery Time (Trr): ~500ns for high efficiency

Common Applications

Engineered for global distribution standards, the RS1M is widely used across the USA, India, and Pakistan in industrial and consumer electronics. Common applications include:

• Switch Mode Power Supplies (SMPS)
• High-frequency inverters and converters
• Freewheeling diodes in DC motor circuits
• Telecommunication equipment
• General-purpose rectification

Why Choose Our RS1M Diodes?

Our RS1M diodes feature precise laser marking for easy identification and are manufactured to strict industrial standards to ensure low power loss and high efficiency. Please refer to the attached PDF datasheet for complete thermal and electrical characteristics.
