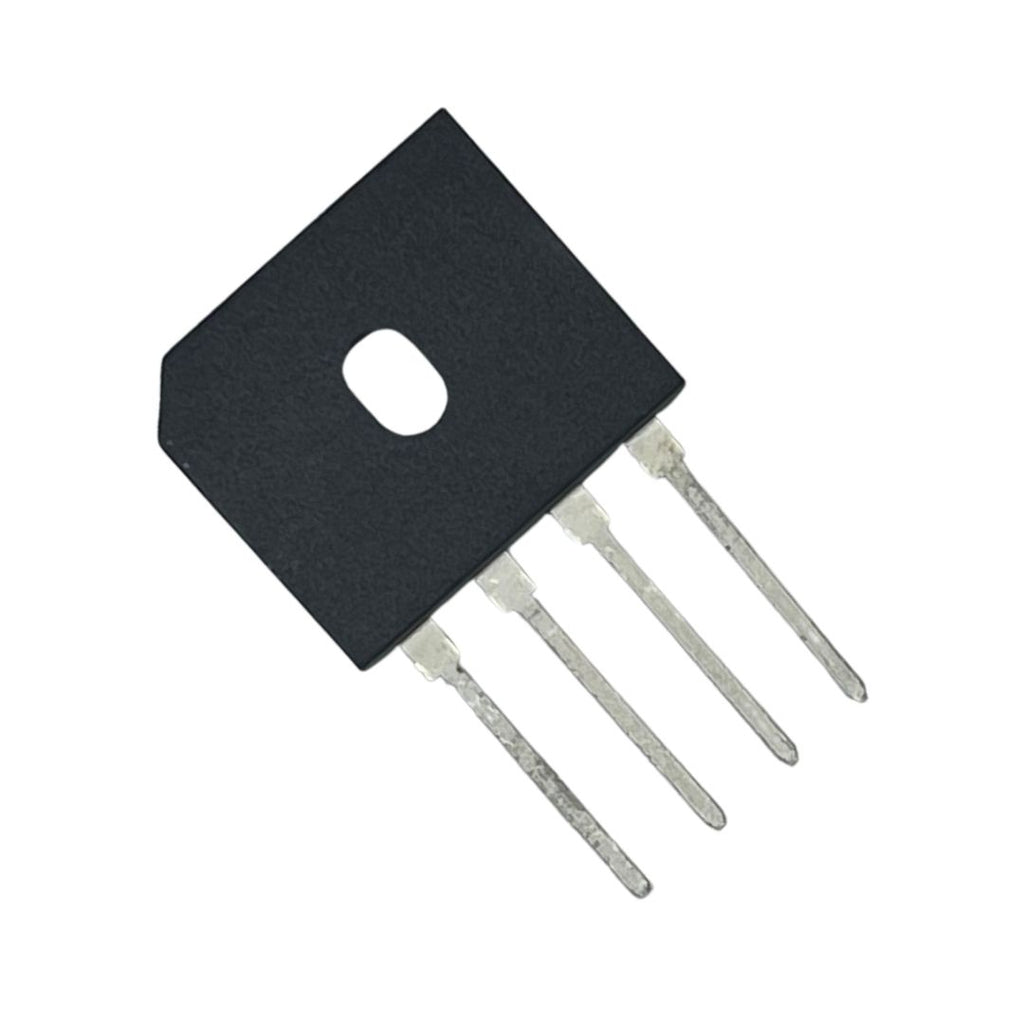

GBU1510 High Power AC-DC Bridge Rectifier – 15 Amp / 1000 Volt

The GBU1510 glass-passivated bridge rectifier is designed for modern high-efficiency AC-to-DC power applications. Built with a glass-passivated die for improved reliability and thermal stability, this rectifier supports up to 1000V reverse voltage and 15A load current, making it suitable for medium-to-high-power electronic designs.

Its compact GBU flat-style package allows easy integration in THT (Through-Hole) assemblies, especially when long-term durability and secure soldering are required. This makes the GBU1510 a trusted choice for computing power supplies, HVAC outdoor units, consumer appliances, servers, and general power-conversion circuits.

Engineered for low-loss performance and robust surge handling, the device supports up to 200A peak forward surge current, offering protection in demanding load conditions. Ideal for designers seeking a cost-effective, RoHS-compliant, halogen-free rectifier that delivers dependable rectification in AC mains environments.

⭐ Key Features

• 15A average forward current capability

• High 1,000V peak reverse voltage

• Glass-passivated chip design for long-term stability

• Supports up to 200A forward surge current

• Suitable for AC input rectification and power conversion

• Compact GBU package with flat leads

• THT mounting for secure PCB soldering

• RoHS compliant and halogen-free construction

• Reliable molded plastic structure

⚡ Typical Applications

• Desktop / workstation power supplies

• Server power modules

• Game console power blocks

• Outdoor HVAC / air-conditioner power boards

• Home appliance PCBs

• High-efficiency AC/DC power conversion

• Industrial and commercial power boards


  Parameter	Value
  Device Type	Single-phase Bridge Rectifier
  Average Output Current	15A
  Peak Reverse Voltage	1000V
  Peak Forward Surge Current	200A
  Construction	Glass-Passivated Die
  Package Style	GBU Flat Package
  Mounting	THT (Through-Hole)
  Leads	Flat Pins
  Compliance	RoHS / Halogen-Free
