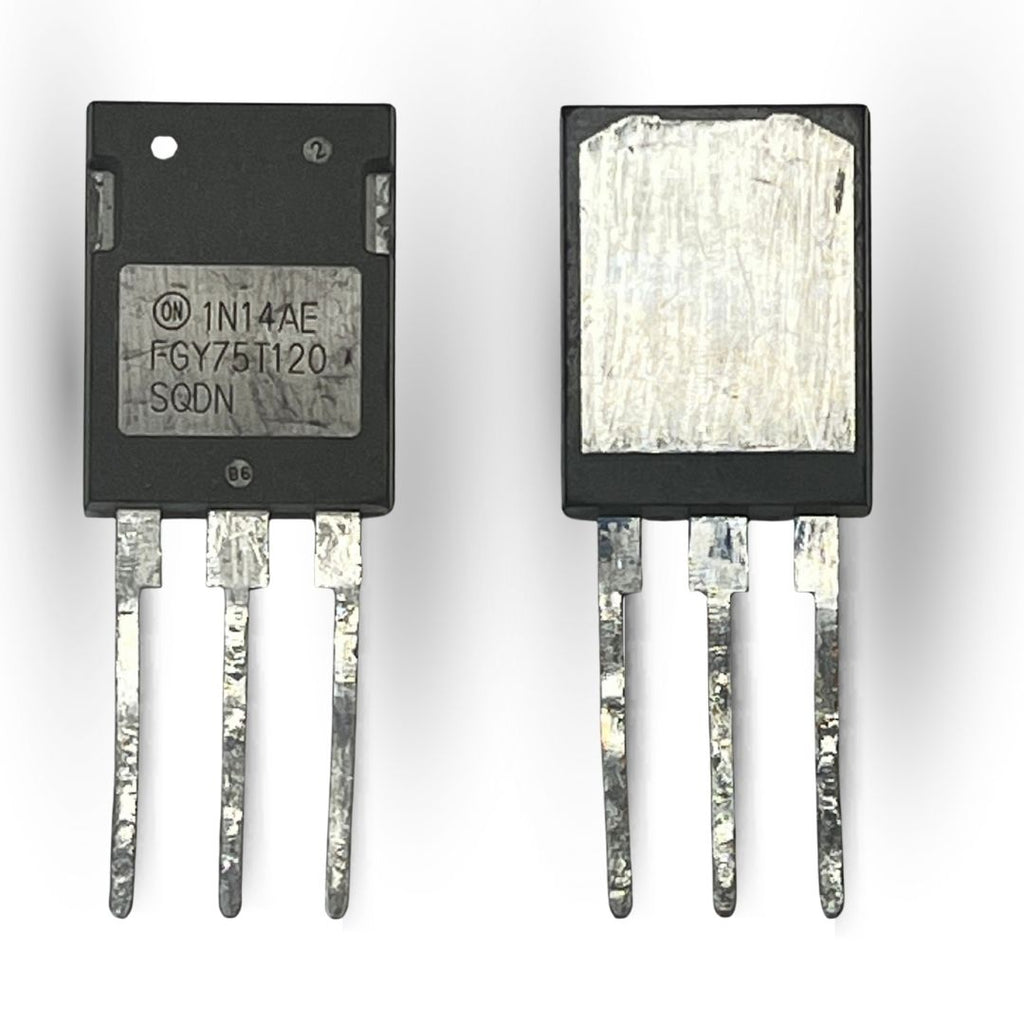

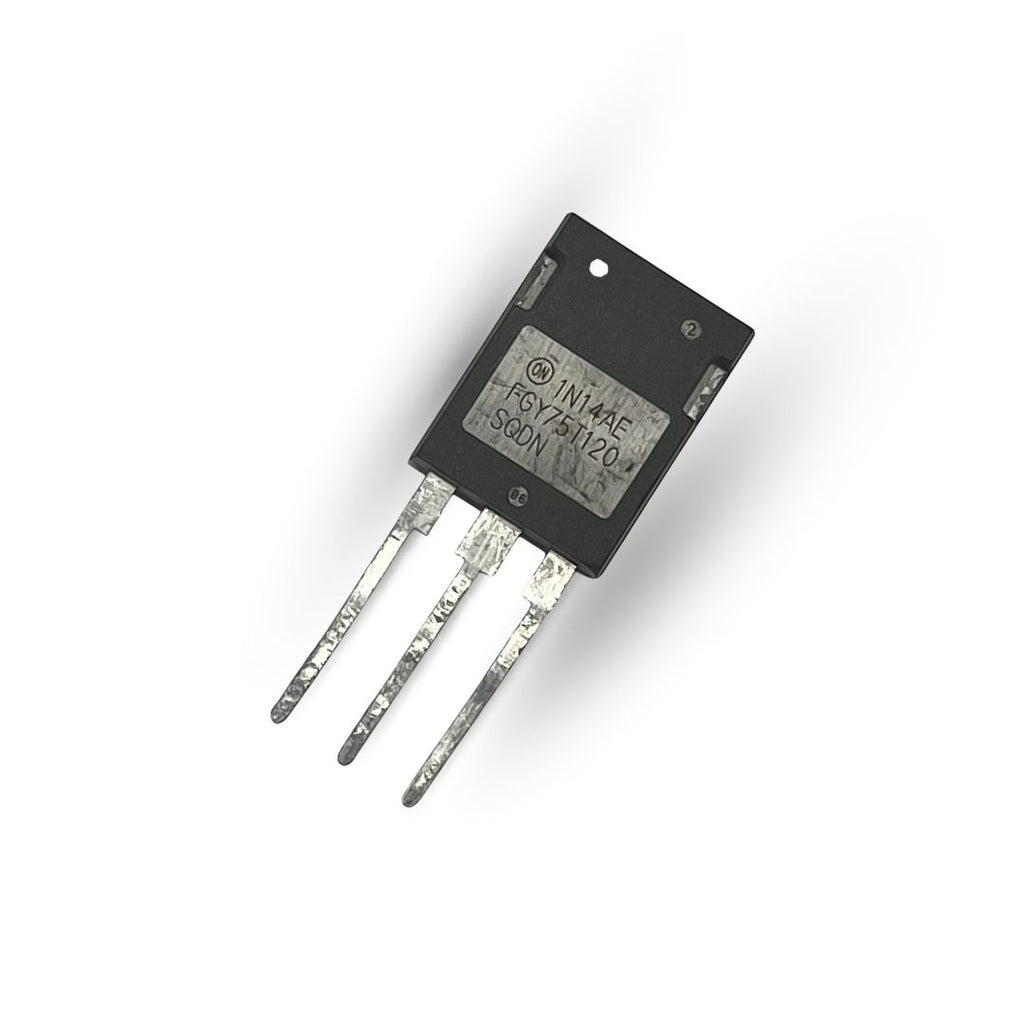

TO-247 FGY75T120SQDN Industrial IGBT – 1200V 75A Field-Stop

FGY75T120SQDN is a high-efficiency 1200V / 75A Field-Stop IGBT engineered for demanding industrial power systems. Built with ON Semiconductor’s FS7 technology, this transistor delivers fast switching, low conduction loss, and excellent thermal stability — ideal for inverters, UPS, VFD motor drives, welding machines, solar conversion, battery chargers, and high-power switching supplies.

With a power dissipation capability of up to 790W and junction temperature handling up to 175°C, the device maintains safe operation under continuous load and repetitive switching. Its built-in anti-parallel diode ensures smooth reverse conduction and improved system efficiency in inductive motor and power-conversion environments.

Designed in a rugged TO-247 through-hole package, the FGY75T120SQDN offers simple mounting, secure heat-sinking, and reliable long-term lifecycle — perfect for engineers upgrading older generations of IGBTs to modern, energy-efficient FS7 performance.

• 1200V collector-emitter rating for industrial high-voltage designs

• 75A output current continuous — up to 150A peak & 300A pulsed

• Handles 790W dissipation with 175°C max junction temperature

• Fast switching with lower switching energy (6.25mJ / 1.96mJ)

• Integrated anti-parallel diode for motor & inductive loads

• Field-Stop FS7 design for reduced conduction losses & higher efficiency

• Heavy-duty TO-247 package for easy mounting & heat sinking


  Parameter	Specification
  Type	N-Channel Field-Stop IGBT + Anti-Parallel Diode
  Model	FGY75T120SQDN (FGY75T120 Series)
  Collector-Emitter Voltage (Vce)	1200V max
  Collector Current (Ic) @25°C	150A max / 75A rated
  Collector Current (Pulse)	300A
  Gate-Emitter Voltage	±20V
  VCE (sat)	~1.7 – 1.95V @ 75A, 15V
  Power Dissipation	790W
  Switching Energy	Eon 6.25mJ / Eoff 1.96mJ
  Reverse Recovery Time	99ns
  Total Gate Charge	399nC
  Junction Temperature	-55°C to +175°C
  Package	TO-247-3 Through-Hole
  Application Class	Inverters, Motor Drives, UPS, SMPS, Solar, EV chargers
