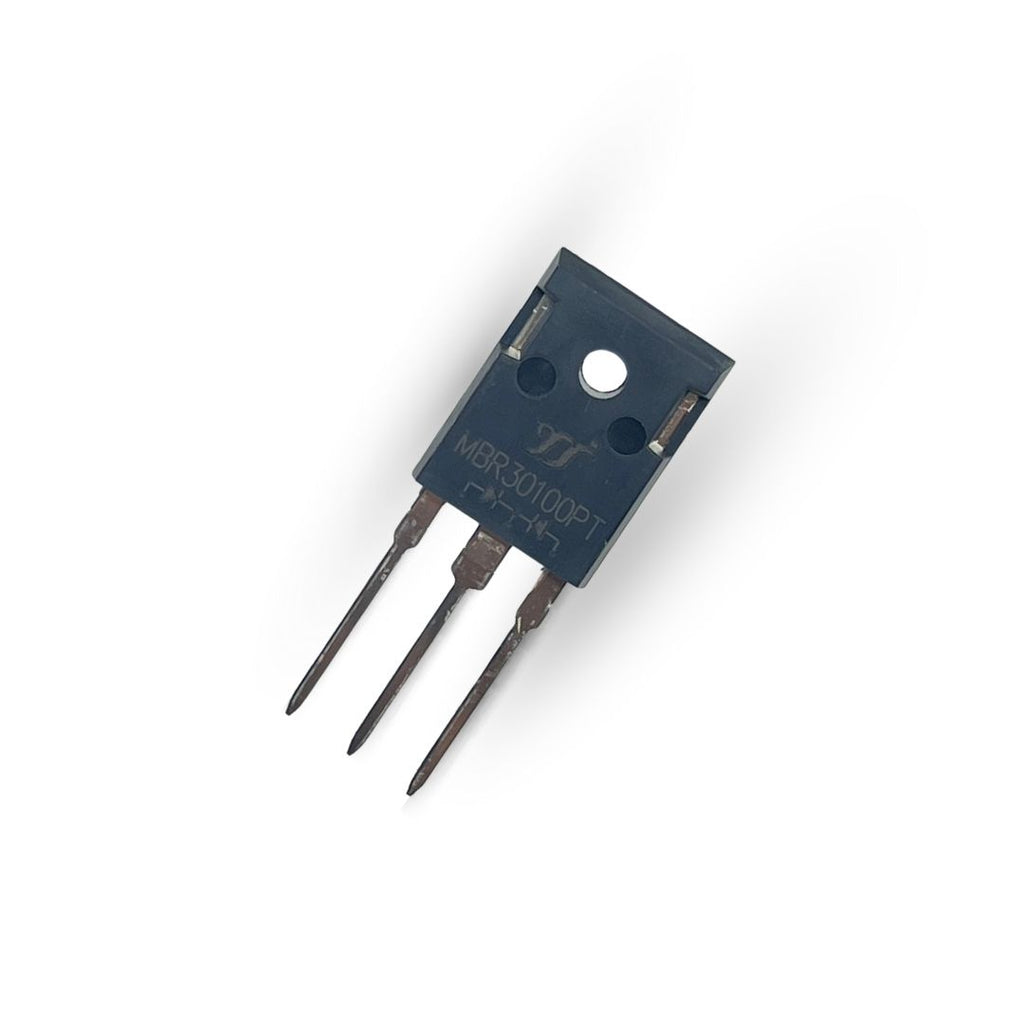

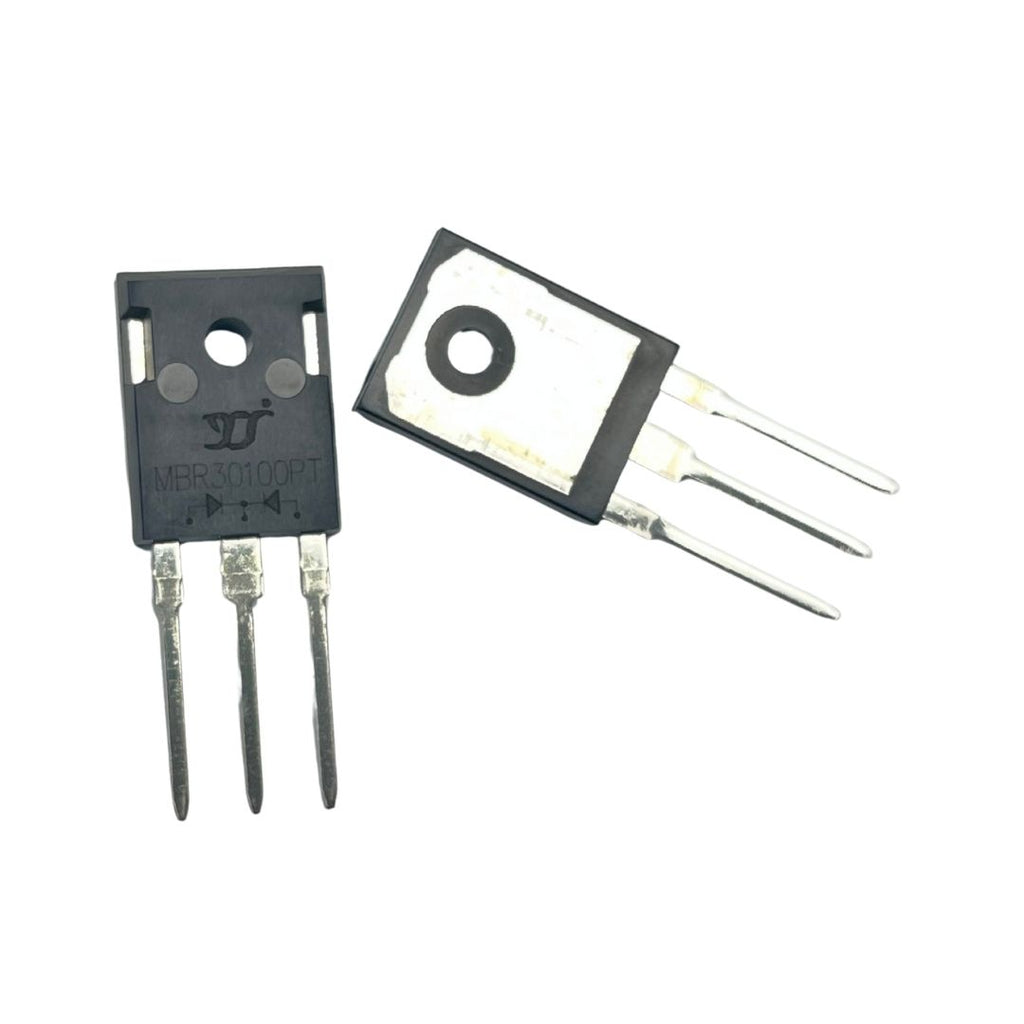

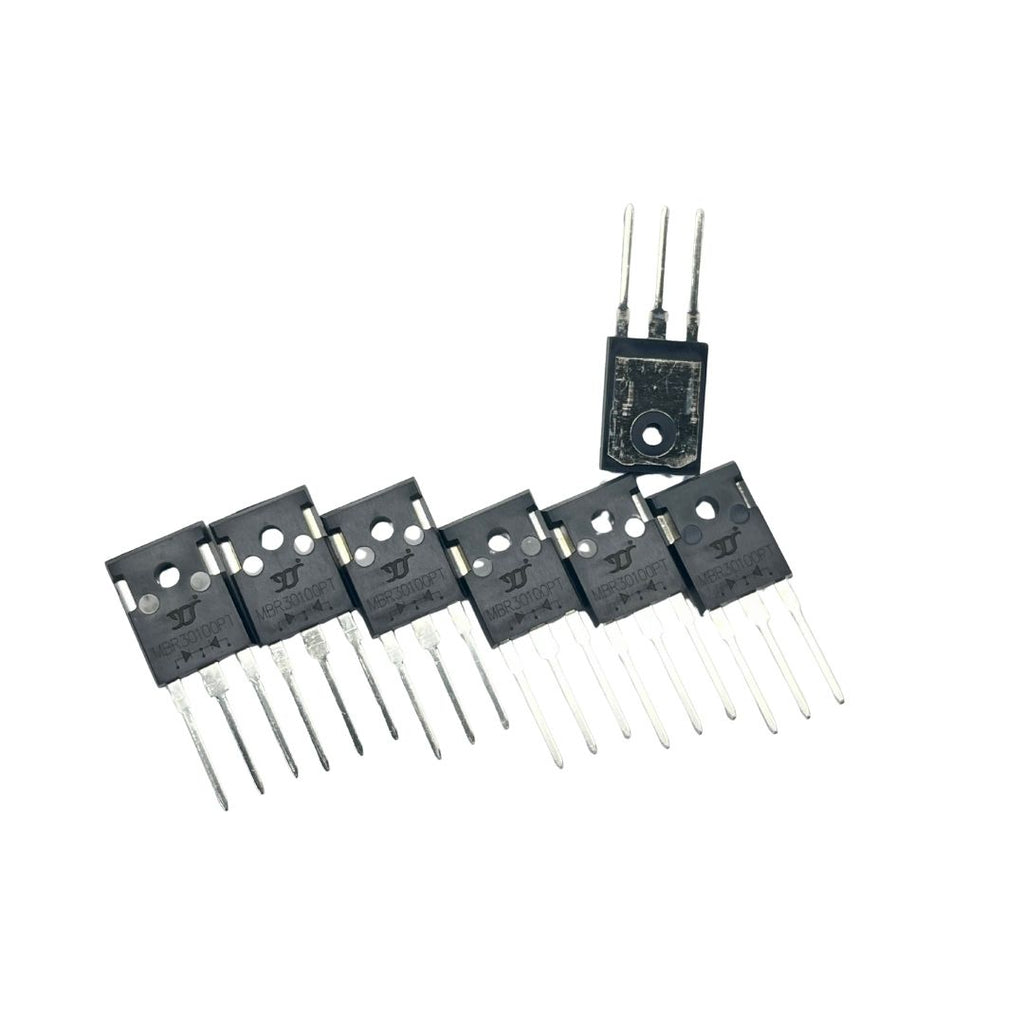

MBR30100PT

The MBR30100PT / MBR40100PT Schottky Barrier Rectifier is a high-performance power diode designed for applications requiring low forward voltage drop, high current handling, and fast switching efficiency. Built using metal-silicon junction technology, this rectifier minimizes power loss while maintaining excellent thermal and electrical stability.

Featuring a dual common cathode configuration, this device is ideal for low-voltage, high-frequency power circuits, including inverters, SMPS, DC-DC converters, free-wheeling circuits, and reverse polarity protection systems. Its rugged construction supports high surge current capability and reliable operation across a wide temperature range.

The rectifier is housed in a high-temperature resistant molded package, ensuring durability during soldering and long-term performance in demanding industrial and commercial environments.

Key Features

• Schottky Barrier technology for low power loss

• High current capability for power applications

• Low forward voltage drop improves system efficiency

• Dual common cathode configuration

• High surge current tolerance

• Wide operating temperature range

• Suitable for high-frequency switching circuits

• Reliable thermal and electrical performance


  Parameter	MBR30100PT	MBR40100PT
  Diode Type	Schottky Barrier	Schottky Barrier
  Peak Reverse Voltage	100 V	100 V
  Average Forward Current	30 A	40 A
  Configuration	Dual Common Cathode	Dual Common Cathode
  Forward Voltage Drop	~0.75 V @ rated current	Low Vf
  Surge Current Capability	High	High
  Operating Temperature	-45°C to +150°C	-45°C to +150°C
  Mounting Style	Through Hole	Through Hole
  Package Type	TO-3 / TO-3P (varies by model)	TO-3 / TO-3P
  Material	Silicon, Copper, Epoxy	Silicon, Copper, Epoxy

  Typical Applications

  • Power inverters

  • Switch Mode Power Supplies (SMPS)

  • DC-DC converters

  • Free-wheeling diodes

  • Reverse polarity protection

  • Battery charging systems

  • Industrial power control circuits

  ---
