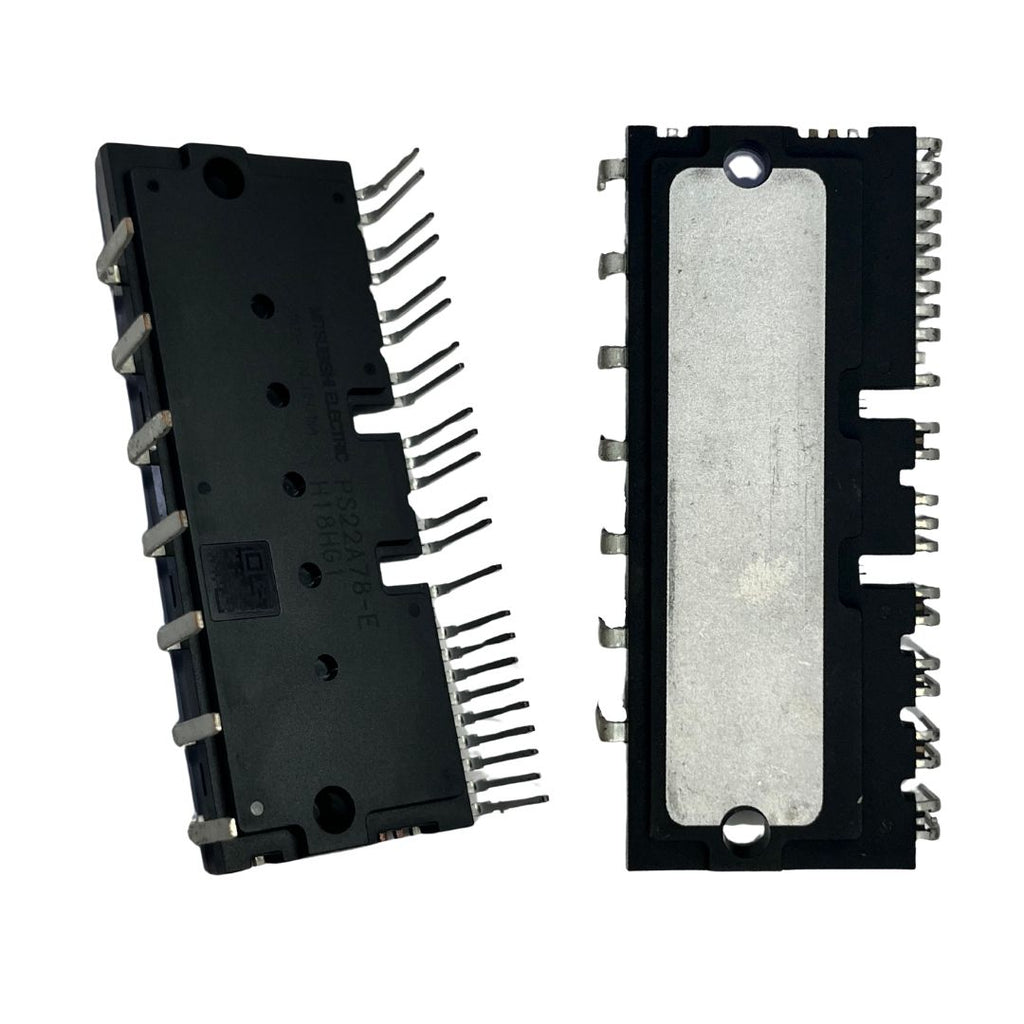

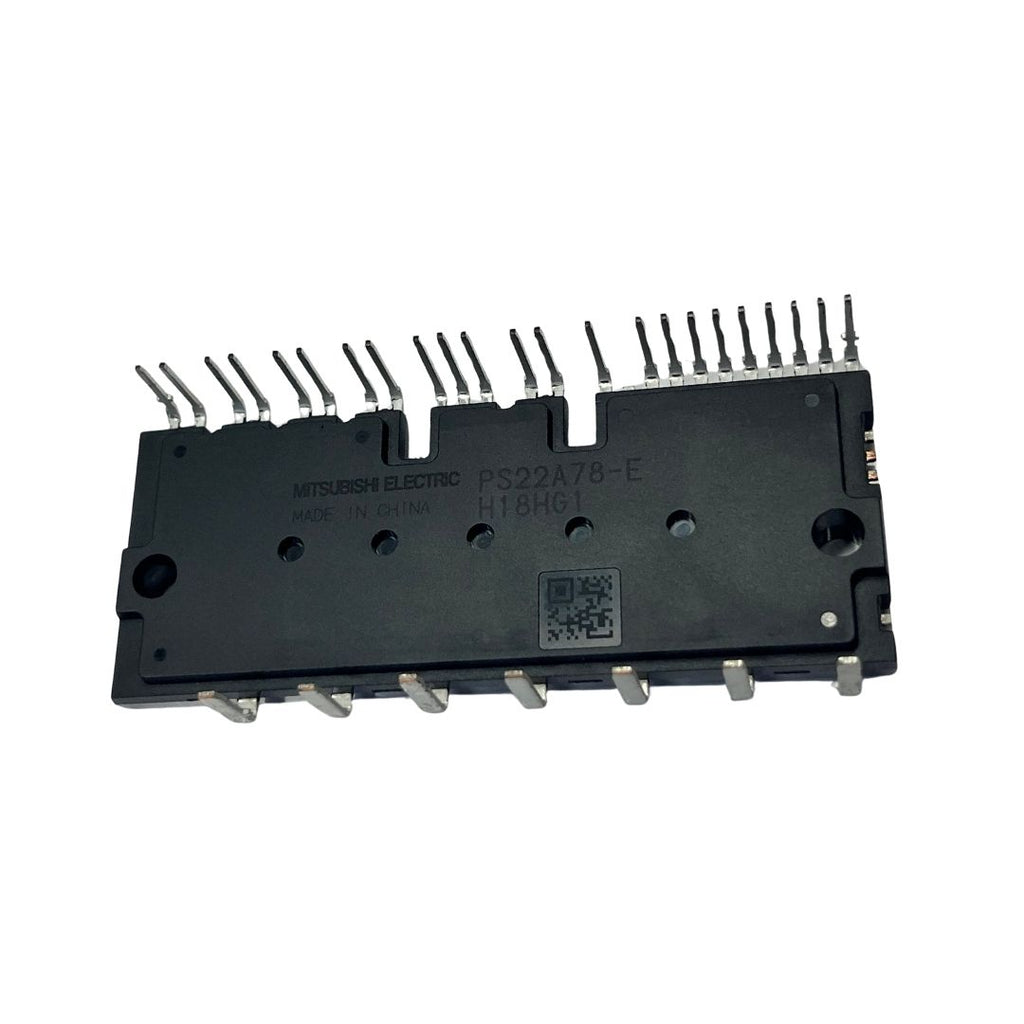

Mitsubishi PS22A78-E IGBT IPM – 1200V / 35A for Motor Drives & Inverters

The PS22A78-E Intelligent Power Module (IPM) from Mitsubishi is a high-performance 1200V / 35A IGBT module designed for demanding industrial applications. This DIP-packaged IPM integrates multiple power devices, drivers, and protection circuitry in a single compact module, simplifying circuit design and improving overall system reliability.

Equipped with full gate CSTBT IGBTs, fast-switching diodes, and linear temperature feedback, the PS22A78-E ensures low power loss, high efficiency, and stable thermal performance. Its isolated copper baseplate allows secure mounting on PCBs while providing electrical isolation for safe operation.

Ideal for AC motor drives, servo motors, industrial automation, inverter systems, and power management applications, the PS22A78-E reduces external components, minimizes PCB space, and enhances system efficiency, making it a cost-effective and reliable solution for modern motor and power control designs.

• 1200V / 35A rated Intelligent Power Module (IPM)

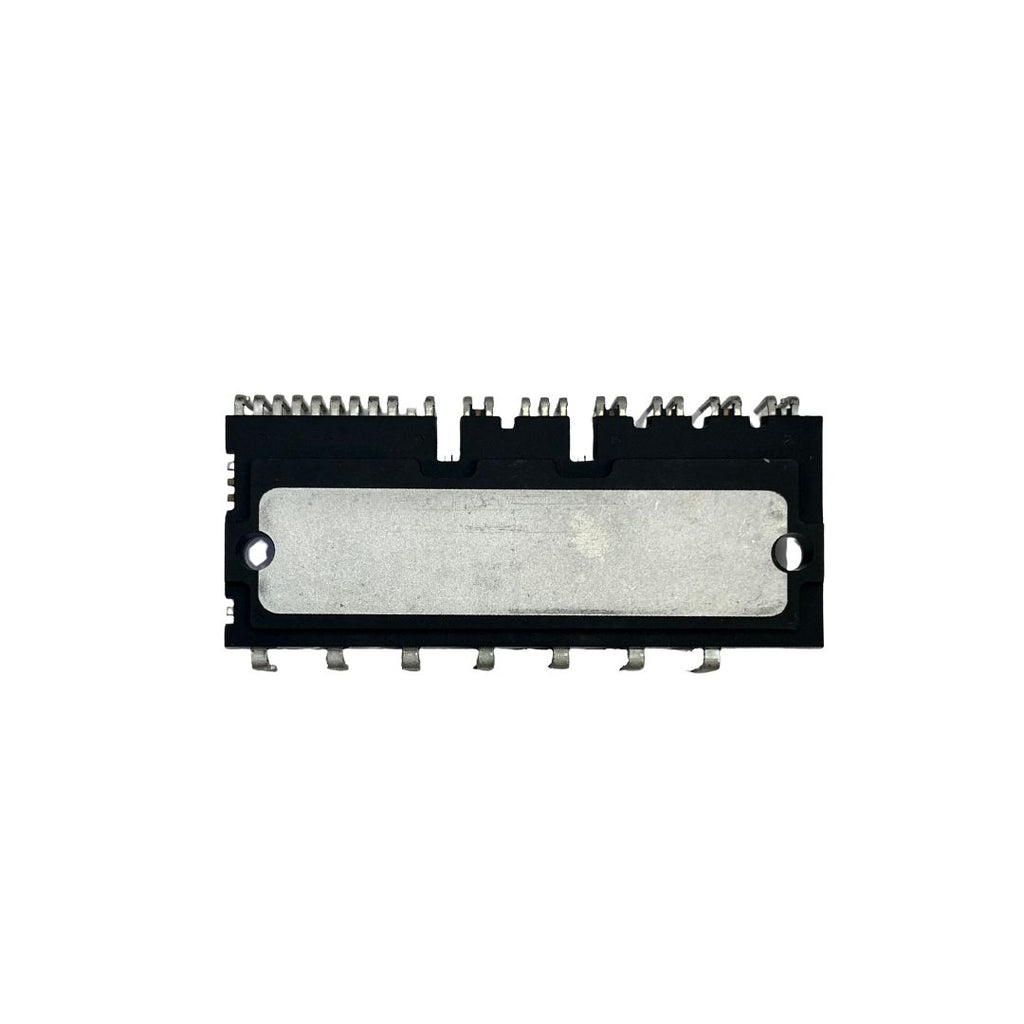

• DIP package with insulated copper baseplate for PCB mounting

• Integrated multiple IGBTs and fast-recovery diodes

• Full gate CSTBT IGBT technology for low saturation voltage and fast switching

• Built-in temperature feedback sensor

• High-speed switching with short tail current

• Compact and robust design for industrial reliability

• Simplifies circuit design and reduces external components

• Ideal for motor drives, inverters, servo controls, and power supplies


  Parameter	Specification
  Module Type	Intelligent Power Module (IPM)
  IGBT Type	Full Gate CSTBT + Field Stop
  Voltage Rating	1200V
  Current Rating	35A
  Isolation Voltage	2.5 kV
  Package	DIP, insulated copper baseplate
  Switching	Fast switching, low saturation voltage
  Built-in Features	Temperature feedback, internal protection
  Applications	AC motor drives, inverters, servo control, industrial automation
  Manufacturer	Mitsubishi
  Series	Intellimod
