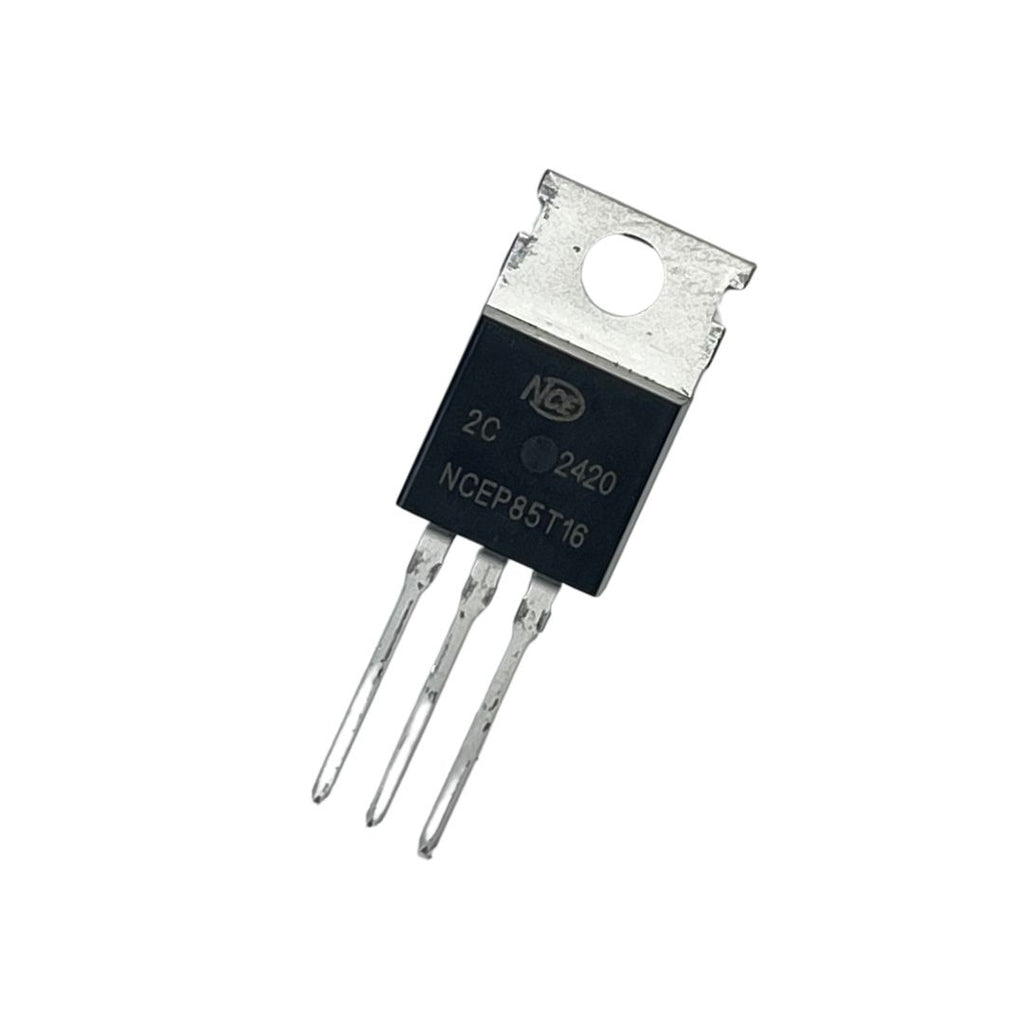

NCEP85T16

The NCEP85T16 N-Channel Power MOSFET is a high-performance power transistor engineered for high-current and high-frequency switching applications. Built using advanced Super Trench technology, this MOSFET delivers exceptionally low RDS(on) and optimized gate charge, resulting in minimal conduction and switching losses.

With a drain-source voltage rating of 85V and a continuous drain current capability of up to 160A, the NCEP85T16 is ideal for demanding power electronics designs. Its robust TO-220 package allows efficient heat dissipation, making it suitable for industrial, inverter, and DC-DC converter applications.

Designed to operate reliably up to 175°C junction temperature, this MOSFET is 100% UIS and ΔVds tested, ensuring durability and long-term stability in harsh electrical environments. Whether you are designing power inverters, motor drivers, synchronous rectifiers, or SMPS circuits, the NCEP85T16 offers excellent efficiency and performance.

🔹 Key Features

• N-Channel Power MOSFET with Super Trench Technology

• Ultra-low RDS(on) ≤ 3.8mΩ @ VGS = 10V

• High current handling up to 160A

• Optimized gate charge for fast switching

• High-frequency switching capability

• Wide operating temperature range -55°C to 175°C

• Pb-free and RoHS compliant

• 100% UIS & ΔVds tested for reliability

🔹 Applications

• DC-DC Converters

• Power Inverters (Solar & UPS)

• Synchronous Rectification

• Motor Control Circuits

• SMPS & Power Supplies

• Industrial Power Electronics

  🔹 Technical Specifications Table

  Parameter	Value
  Part Number	NCEP85T16
  Transistor Type	Power MOSFET
  Channel Type	N-Channel
  Drain-Source Voltage (VDS)	85V
  Continuous Drain Current (ID)	160A
  Pulsed Drain Current (IDM)	480A
  Power Dissipation (PD)	220W
  RDS(on)	≤ 0.0038Ω
  Gate-Source Voltage (VGS)	±20V
  Gate Threshold Voltage	≤ 4.5V
  Total Gate Charge (Qg)	105nC
  Rise Time	29ns
  Drain-Source Capacitance	1520pF
  Junction Temperature	175°C
  Package Type	TO-220-3L

  🔹 Package Information

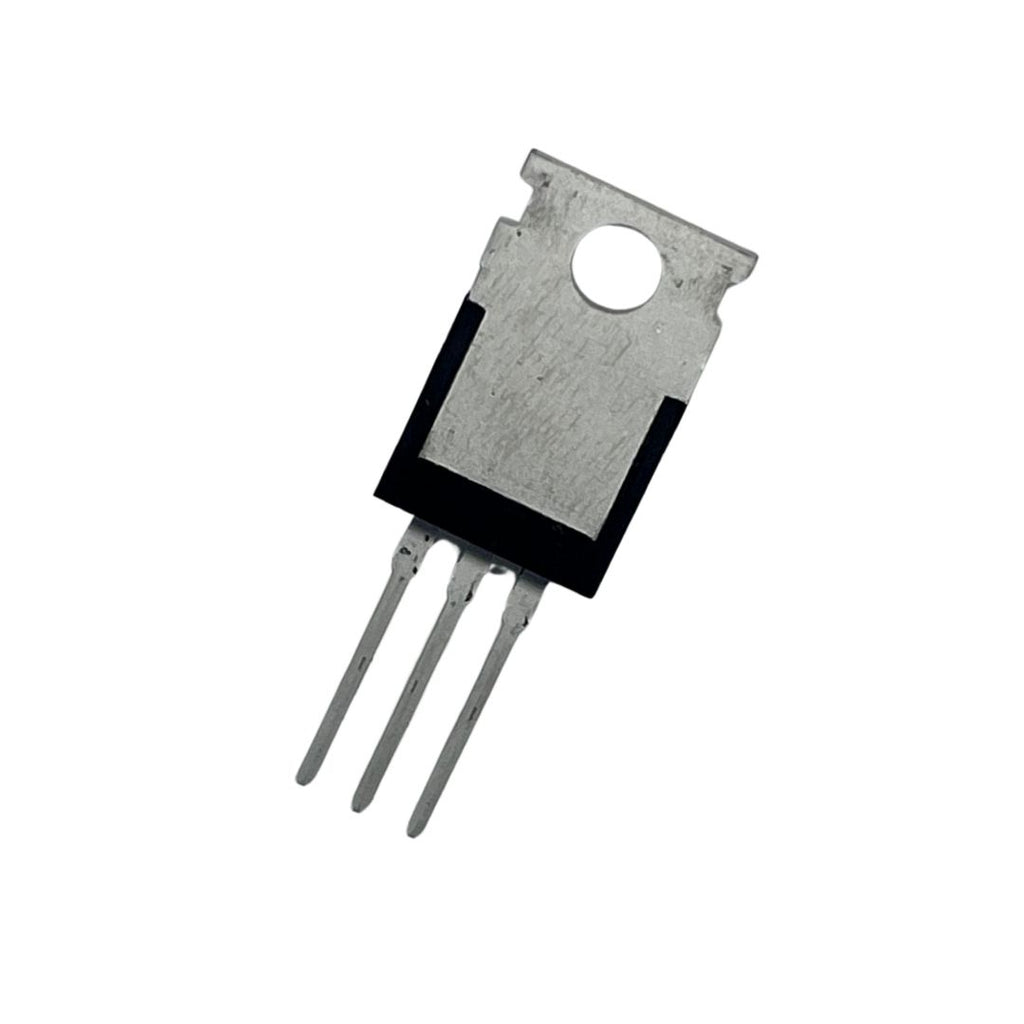

  • Package: TO-220-3L

  • Mounting: Through Hole

  • Suitable for heatsink installation
