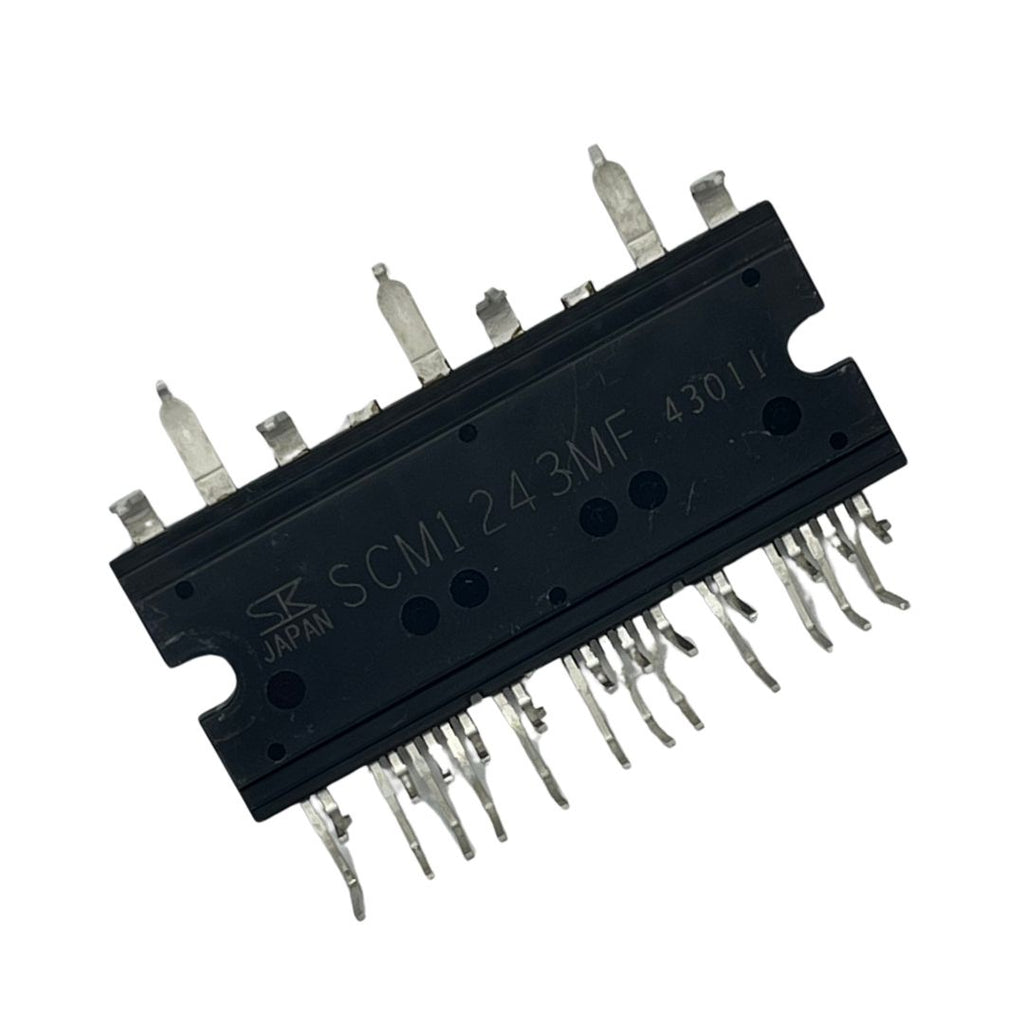

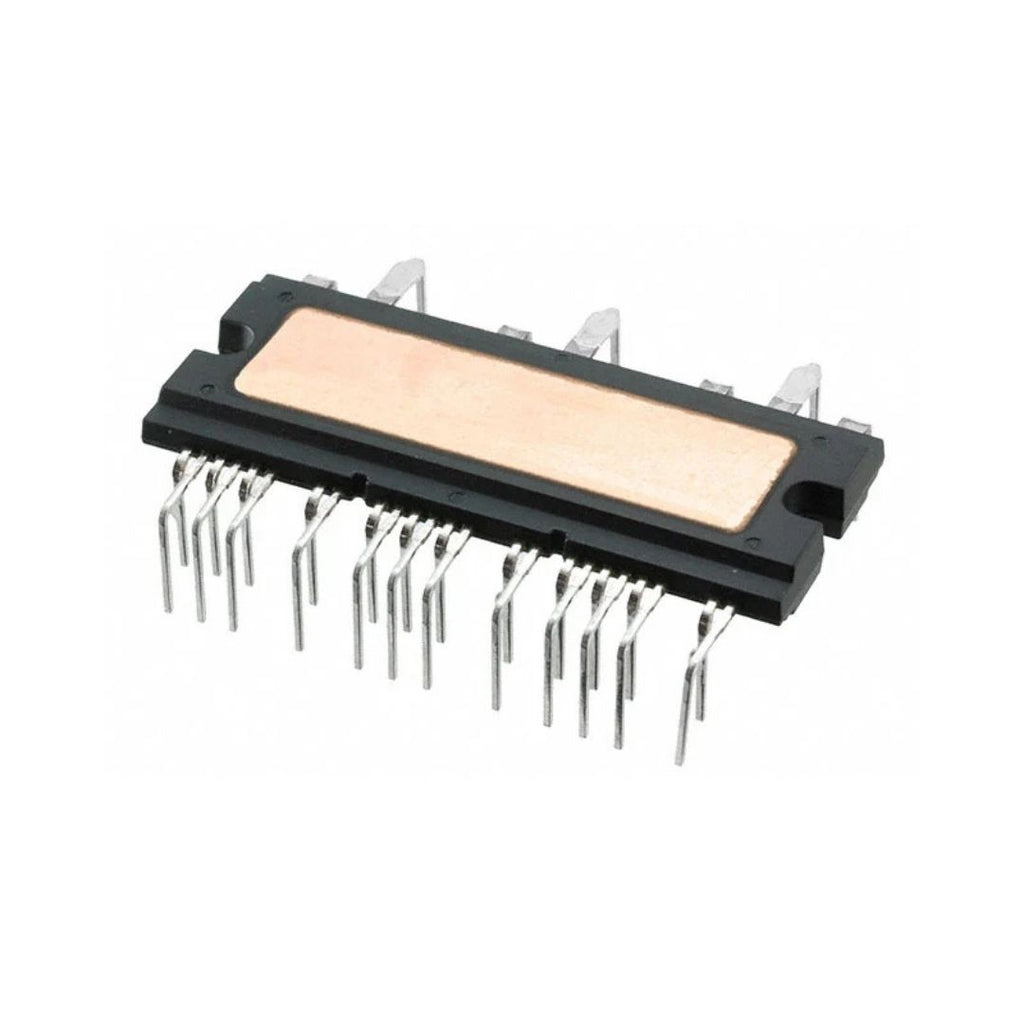

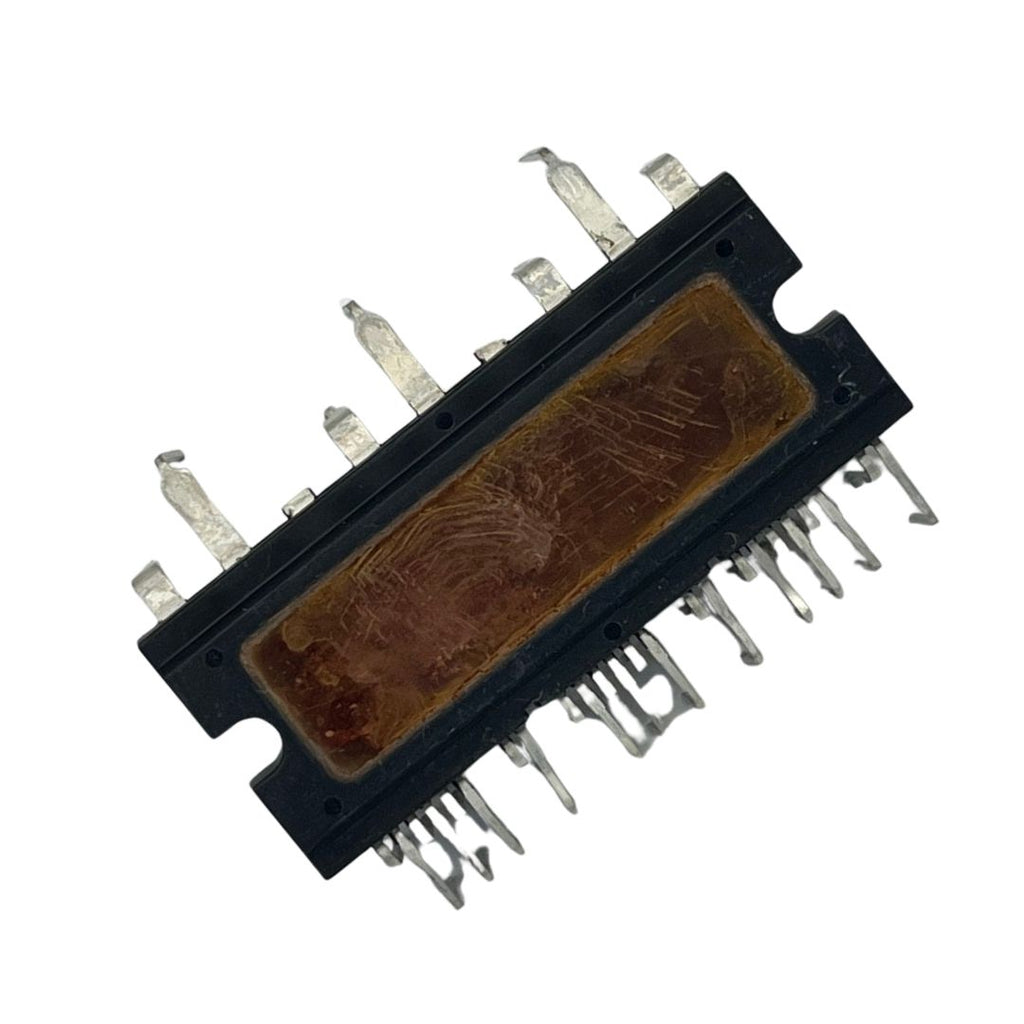

SCM1243MF – 600V / 15A Three-Phase Motor Driver Power IC (IGBT, 3-Shunt Support)

SCM1243MF is a 600-volt, 15-amp high-voltage power IC designed for efficient three-phase inverter motor control. The device integrates IGBT power elements, pre-driver logic, and bootstrap circuitry into a single compact solution—ideal for medium-capacity motors that operate from universal AC input.

Its architecture supports three-shunt current sensing, enabling precise torque and speed control in inverter-driven appliances. With 3.3–5V CMOS input compatibility, the IC interfaces easily with common microcontrollers.

For system reliability, SCM1243MF includes extensive protection features, including: under-voltage lockout on both high-side and low-side supplies, over-current protection with auto-restart, simultaneous-on prevention, and thermal shutdown. During fault events, a dedicated fault-output pin simplifies system diagnostics.

With 2,500V isolation and UL component recognition, the SCM1243MF delivers safe operation in high-voltage appliance environments.

⭐ Key Advantages

• All-in-one solution reduces external BOM

• Built-in bootstrap diodes with current-limiting resistors

• 3-shunt control enables efficient inverter feedback

• Auto-restart protection enhances safety

• CMOS-level digital inputs (3.3V / 5V compatible)

• UL-recognized isolation barrier for appliance use

• Designed for medium-power AC motors

⚡ Typical Applications

Ideal for three-phase inverter-controlled motors such as:

• Refrigerator compressor motors

• Air-conditioner compressor drives

• Washing machine main motors

• Fan and blower drives

• Water pump motors

• General home appliance inverter boards

✨ Marketing Bullet Points (Short Form)

• 600V / 15A IGBT motor drive IC

• Integrated pre-drivers + bootstrap circuitry

• Multi-level protection with fault reporting

• 3-shunt current sensing ready

• Universal AC appliance motor support


  Attribute	Value
  Product Type	Power IC / Three-Phase Motor Driver
  Breakdown Voltage	600 V
  Output Current	15 A
  Output Element	IGBT
  VCE(sat) Typ.	~1.70 V
  Input Logic Level	3.3 V / 5 V CMOS
  Bootstrap Diodes	Integrated (with 22Ω limiting resistors)
  Current Sensing	3-Shunt Supported
  UVLO	High-Side & Low-Side (Auto Restart)
  Over-Current Protection	Yes (Auto Restart)
  Thermal Shutdown	Yes (Auto Restart)
  Simultaneous-On Prevention	Yes
  Fault Output Pin	Yes
  Isolation Rating	2500 V (1 min)
  Compliance	Pb-Free, UL Recognized
  Typical Loads	Refrigerator, AC, Pump, Fan, Washer Motors
